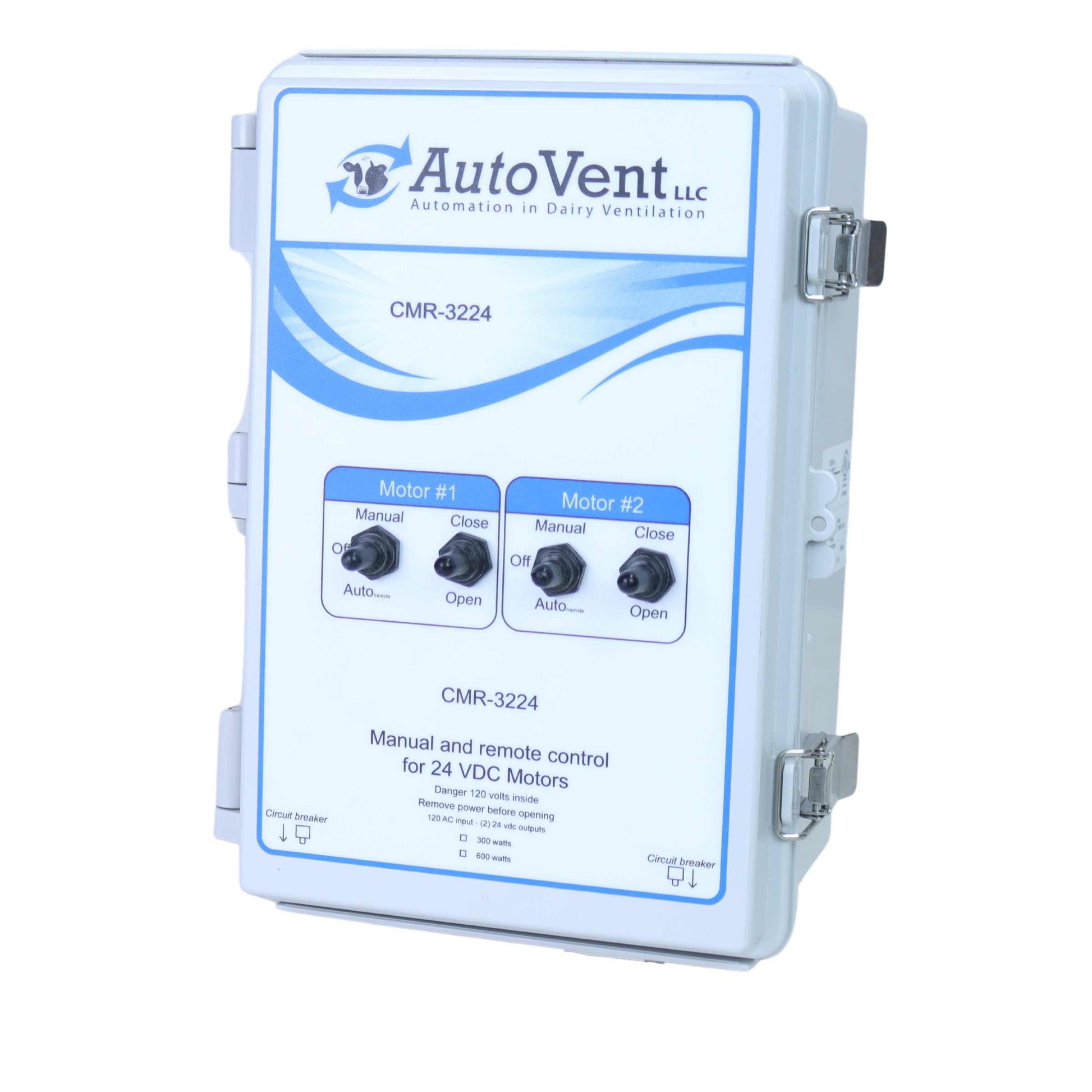

Horticulture and Livestock Vent - computer to 24vdc vent motor interface CMR-3224-5

•  Two independent channels
• Allows two 24vdc vent motor  circuits to run independently.
• Provides a powered , overridable , fused and indicator interface to most any control system.
• Provides high current, reversing DC to the motors.
• Protects the motor. Comes with 5, 7.5 and 10 amp circuit breakers per motor/channel
• Easily test and manually override control system out near the motor.
• Easy to understand wiring. Indicator lights for each signal input. Indicator leds for each motor direction output

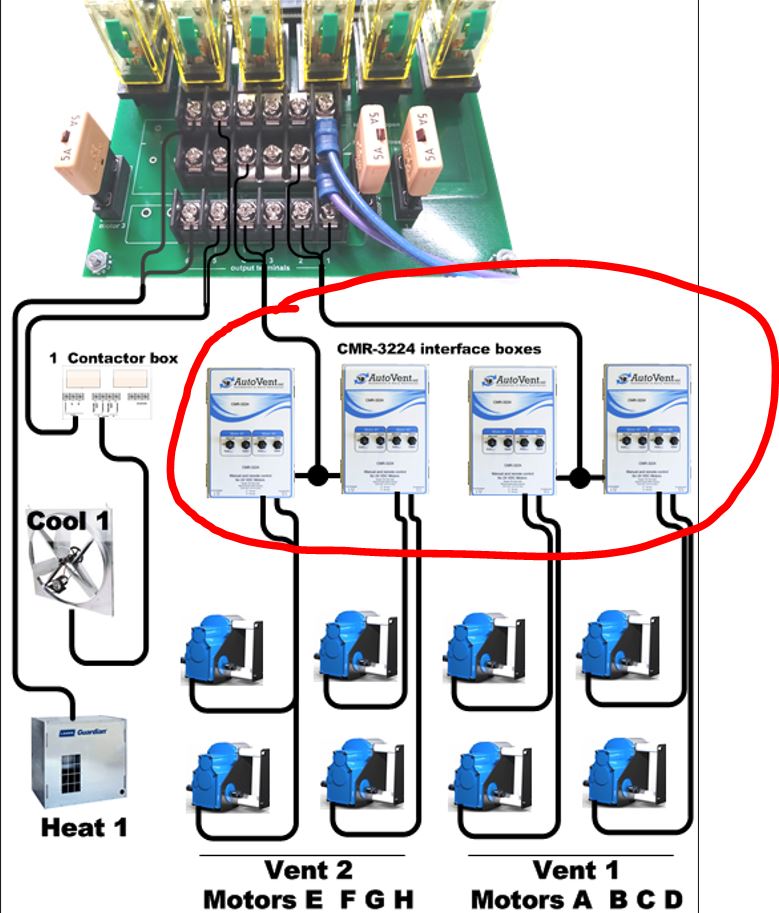

• Allows infinitely large zones. Connect control signals together to make 1 large system from a single curtain/vent signal.
